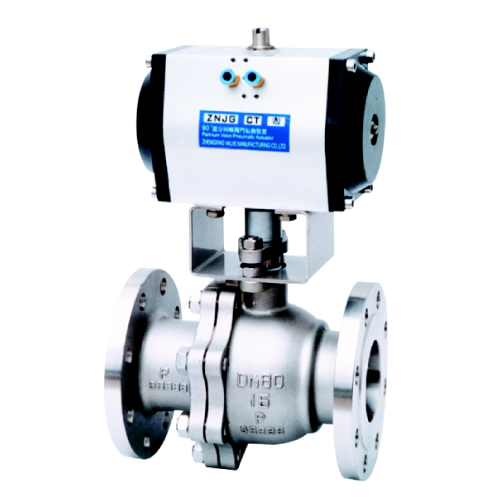

Pneumatic ball valve Q641
- name: Pneumatic ball valve Q641
- Type: Q641
- Presure: 1.0～6.4MPa
- Specifications: DN15~DN200
- material: WCB CF8 CF3 CF8M CF3M
Product description
Pneumatic ball valve is equipped with pneumatic actuator. Pneumatic actuator execution speed is relatively fast, and do not require workers to pro force, to a large extent, saving human resources and time. This type of valve in the pipeline should generally be installed horizontally. Pneumatic ball valve development and evolution of the working principle of pneumatic ball valve is evolved from the cut-off valve. It has the same rotation 90 degrees to lift the action, the difference is that the plug body is a sphere, a circular through hole or channel through its axis. The ratio of the spherical surface and the channel port should be such that when the ball is rotated 90 degrees, the inlet and outlet should be all spherical, thereby cutting off the flow.

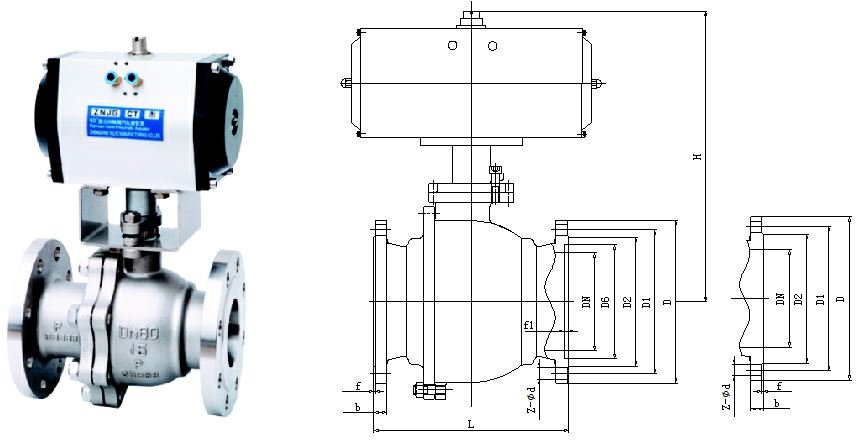

主要连接及外形尺寸(PN16)
公称
通径
主要阀门连接尺寸
阀门连接尺寸
法兰连接尺寸
L
H
D
D1
D2
b
f
Z-Φd
15
130
200
95
65
45
14
2
4-Φ14
20
140
204
105
75
55
14
2
4-Φ14
25
150
215
115
85
65
14
2
4-Φ14
32
165
244
135
100
78
16
2
4-Φ18
40
180
264
145
110
85
16
3
4-Φ18
50
200
274
160
125
100
16
3
4-Φ18
65
220
379
180
145
120
18
3
4-Φ18
80
250
389
195
160
135
20
3
8-Φ18
100
280
416
215
180
155
20
3
8-Φ18
125
320
542
245
210
185
22
3
8-Φ18
150
360
572
280
240
210
24
3
8-Φ23
200
400
600
335
295
265
26
3
12-Φ23
250
550
690
405
355
320
30
3
12-Φ25
主要连接及外形尺寸(PN25)
公称
通径
主要阀门连接尺寸
阀门连接尺寸
法兰连接尺寸
L
H
D
D1
D2
b
f
Z-Φd
15
130
200
95
65
45
16
2
4-Φ14
20
140
204
105
75
55
16
2
4-Φ14
25
150
215
115
85
65
16
2
4-Φ14
32
165
244
135
100
78
18
2
4-Φ18
40
180
264
145
110
85
18
3
4-Φ18
50
200
274
160
125
100
20
3
4-Φ18
65
220
379
180
145
120
22
3
8-Φ18
80
250
389
195
160
135
22
3
8-Φ18
100
280
416
230
190
160
24
3
8-Φ23
125
320
542
270
220
188
28
3
8-Φ25
150
360
572
300
250
218
30
3
8-Φ25
200
400
600
360
310
278
34
3
12-Φ25
250
550
690
425
370
332
36
3
12-Φ30
主要连接及外形尺寸(PN40)
公称
通径
主要阀门连接尺寸
阀门连接尺寸
法兰连接尺寸
L
H
D
D1
D2
D6
b
f
f2
z-Φd
15
130
200
95
65
45
40
16
2
4
4-Φ14
20
140
204
105
75
55
51
16
2
4
4-Φ14
25
150
215
115
85
65
58
16
2
4
4-Φ14
32
180
244
135
100
78
66
18
2
4
4-Φ18
40
200
264
145
110
85
76
18
3
4
4-Φ18
50
220
274
160
125
100
88
20
3
4
4-Φ18
65
250
379
180
145
120
110
22
3
4
8-Φ18
80
280
389
195
160
135
121
22
3
4
8-Φ18
100
320
416
230
190
160
150
24
3
4
8-Φ23
125
400
542
270
220
188
176
28
3
4.5
8-Φ25
150
400
572
300
250
218
204
30
3
4.5
8-Φ25
200
550
600
375
320
282
260
38
3
4.5
12-Φ30
Main connection and dimensions(PN64)
nominal diameter
Main valve connection dimensions
Valve connection size
Flange connection size
L
H
D
D1
D2
D6
b
f
f2
z-Φd
15
165
204
105
75
55
40
18
2
4
4-Φ14
20
190
215
125
90
68
51
20
2
4
4-Φ18
25
216
244
135
100
78
58
22
2
4
4-Φ18
32
229
264
150
110
82
66
24
2
4
4-Φ23
40
241
274
165
125
95
76
24
3
4
4-Φ23
50
292
379
175
135
105
88
26
3
4
4-Φ23
65
330
389
200
160
130
110
28
3
4
8-Φ23
80
356
416
210
170
140
121
30
3
4
8-Φ23
100
432
542
250
200
168
150
32
3
4.5
8-Φ25
125
508
572
295
240
202
176
36
3
4.5
8-Φ30
150
559
600
340
280
240
204
38
3
4.5
8-Φ34
200
660
690
405
345
300
260
44
3
4.5
12-Φ34
Main parts material
material code
valve body
ball body valve stem
sealing
filler
shim
C
WCB carbon steel
20Cr13
20Cr13
PTFE/PPL
graphite
304+graphite
P
CF8 (304 )stainless steel
304
304
PTFE/PPL
PTFE/PPL
PTFE/PPL
PL
CF3 (304 L) stainless steel
304L
304L
PTFE/PPL
PTFE/PPL
PTFE/PPL
R
CF8M (316) stainless steel
316
316
PTFE/PPL
PTFE/PPL
PTFE/PPL
RL
CF3M(316L)stainless steel
316L
316L
PTFE/PPL
PTFE/PPL
PTFE/PPL
material code
valve body
ball body
body stem
valve seat
filler
shim
C
WCB carbon steel
20Cr13+Nickel based alloy / tungsten cobalt alloy
20Cr13
20Cr13+Cemented carbide
graphite
304+graphite
P
CF8 (304 )stainless steel
304+Nickel based alloy / tungsten cobalt alloy
304
304+Cemented carbide
graphite
304+graphite
PL
CF3 (304 L) stainless steel
304L+Nickel based alloy / tungsten cobalt alloy
304L
304L+Cemented carbide
graphite
304+graphite
R
CF8M (316) stainless steel
316+Nickel based alloy / tungsten cobalt alloy
316
316+Cemented carbide
graphite
304+graphite
RL
CF3M(316L)stainless steel
316L+Nickel based alloy / tungsten cobalt alloy
316L
316L+Cemented carbide
graphite
304+graphite
Other special materials, our company can also be tailored to customer needs.
壳体材料
适用介质
适用温度（℃）
WCB（C型）
水、蒸汽、油品
≤425
CF8（P型）
硝酸类
≤540
CF8M（R型）
醋酸类
≤540
CF3（PL型）
强氧化介质
≤425
CF3M（RL型）
尿素等腐蚀性介质
≤425
壳体材料
适用介质
适用温度（℃）
备注
WCB（C型）
水、蒸汽、油品
≤150
密封圈为PPL
时≤280℃
CF8（P型）
硝酸类
≤150
CF8M（R型）
醋酸类
≤150
CF3（PL型）
强氧化介质
≤150
CF3M（RL型）
尿素等腐蚀性介质
≤150
公称压力PN（MPa）
壳体
试验压力（MPa）
密封（液）
密封（气）
1.6
2.4
1.8
0.6
2.5
3.8
2.8
0.6
4
6
4.4
0.6
6.4
9.6
7
0.6
