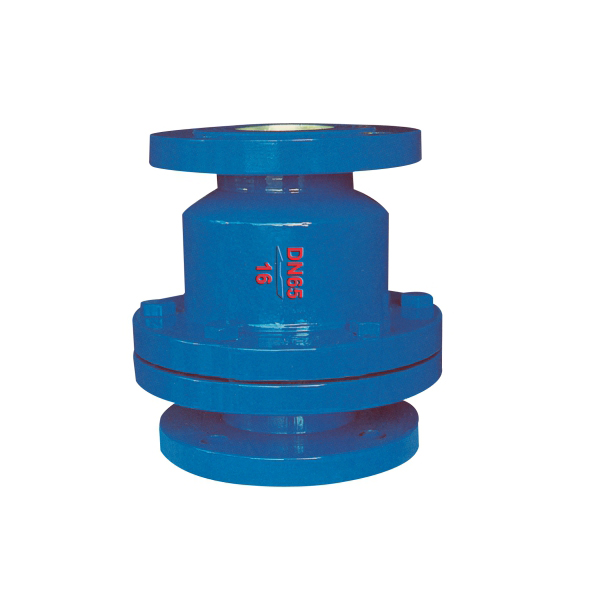

Energy saving shuttle type check valve

Update: 2016/6/12      View:
  • name:    Energy saving shuttle type check valve
  • Type:    HC41X
  • Presure:    1.0~2.5MPa
  • Specifications:    DN40~DN400
  • material:    Gray iron, ductile iron, carbon steel
  • Order Online
  • Product description
    HC41X of energy-saving shuttle type check valve is mainly used for water supply system, vertically installed in the pipeline, by the system of differential pressure and valve flap own weight lifting, automatic stop water medium countercurrent, guarantee the pipeline's normal operation.

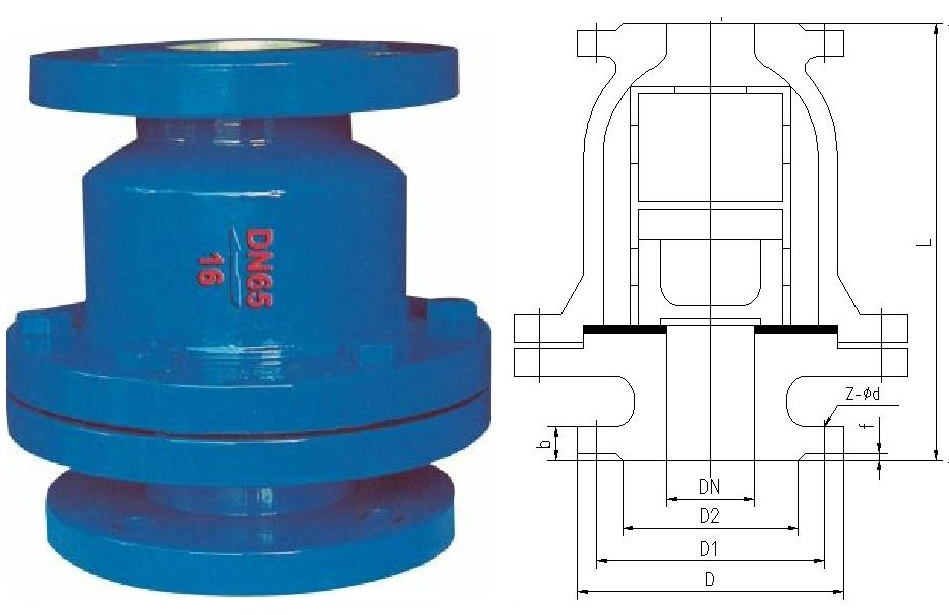

  • Main connection and dimensions(PN10)

    nominal diameter

    Main connection and dimensions

    L

    D

    D1

    D2

    b

    f

    z-Φd

    50

    205

    165

    125

    93

    18

    3

    4-Φ18

    65

    215

    185

    145

    113

    18

    3

    4-Φ18

    80

    240

    200

    160

    128

    20

    3

    8-Φ18

    100

    292

    220

    180

    148

    20

    3

    8-Φ18

    125

    330

    250

    210

    178

    22

    3

    8-Φ18

    150

    355

    285

    240

    204

    22

    3

    8-Φ22

    200

    495

    340

    295

    259

    24

    3

    8-Φ22

    250

    620

    395

    350

    314

    26

    3

    12-Φ22

    300

    700

    445

    400

    362

    26

    4

    12-Φ22

    350

    785

    505

    460

    422

    26

    4

    16-Φ22

    400

    915

    565

    515

    473

    26

    4

    16-Φ26

    Main connection and dimensionsPN16)

    nominal diameter

    Main connection and dimensions

    L

    D

    D1

    D2

    b

    f

    z-Φd

    50

    205

    165

    125

    93

    18

    3

    4-Φ18

    65

    215

    185

    145

    113

    18

    3

    4-Φ18

    80

    240

    200

    160

    128

    20

    3

    8-Φ18

    100

    292

    220

    180

    148

    20

    3

    8-Φ18

    125

    330

    250

    210

    178

    22

    3

    8-Φ18

    150

    355

    285

    240

    204

    22

    3

    8-Φ22

    200

    495

    340

    295

    259

    24

    3

    12-Φ22

    250

    620

    405

    355

    315

    26

    3

    12-Φ26

    300

    700

    460

    410

    370

    28

    3

    12-Φ26

    350

    785

    520

    470

    428

    30

    4

    16-Φ26

    400

    915

    580

    525

    479

    32

    4

    16-Φ30
