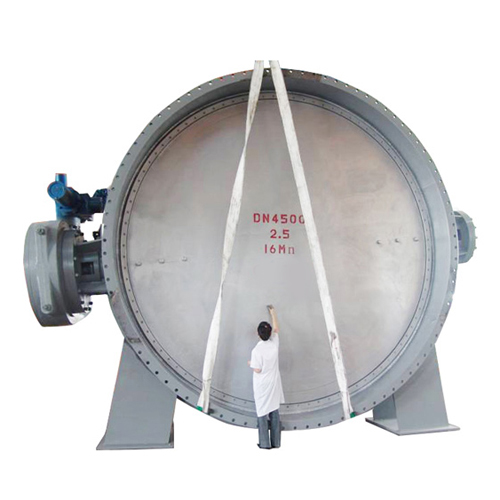

Electric butterfly valve
- name: Electric butterfly valve
- Type: D943H/X
- Presure: 1.0～2.5MPa
- Specifications: DN40~DN4500
- material: Gray iron, ductile iron, carbon steel, stainless steel
Product description
D943 electric butterfly valve is through the rotation of the circular plate with the stem for opening and closing parts to achieve the valve open or closed, the main valve for the use of cut-off valve can also be designed to have the function of regulation and truncation. Valve configuration electric actuator to save a lot of manpower and turn off time. Three eccentric butterfly valve multi-level has no mechanical wear, up to zero leakage for as regulation, cut off fluid and the best device in petroleum, chemical, metallurgy, electric power, food, medicine, to drainage, gas transportation and other different medium pipeline.

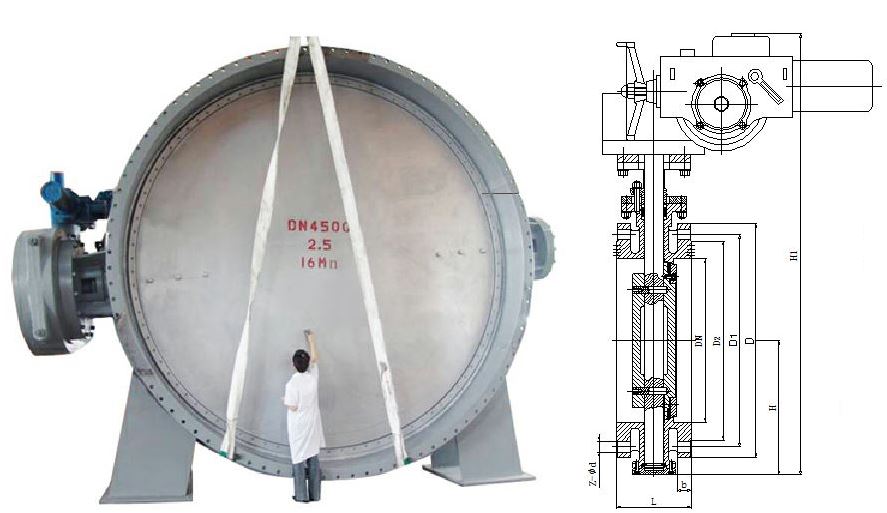

Main connection and dimensions (PN6)
nominal diameter
Main dimensions and connection dimensions (mm)
valve size mm
flange connection size mm
L
H
H1
D
D1
D2
b
f
z-Φd
short series
long series
50
108
150
112
530
140
110
82
14
3
4-Φ14
65
112
170
115
530
160
130
102
14
3
4-Φ14
80
114
180
120
565
190
150
118
16
3
4-Φ18
100
127
190
138
600
210
170
138
16
3
4-Φ18
125
140
200
164
640
240
200
168
18
3
8-Φ18
150
140
210
175
705
265
225
193
18
3
8-Φ18
200
152
230
200
775
320
280
248
20
3
8-Φ18
250
165
250
243
945
375
335
323
22
3
12-Φ18
300
178
270
283
1070
440
395
357
22
4
12-Φ22
350
190
290
310
1140
490
445
407
22
4
12-Φ22
400
216
310
340
1210
540
495
457
22
4
16-Φ22
450
222
330
380
1335
595
550
512
22
4
16-Φ22
500
229
350
410
1415
645
600
562
24
4
20-Φ22
600
267
390
470
1605
755
705
661
30
5
20-Φ26
700
292
430
550
1844
860
810
766
30
5
24-Φ26
800
318
470
640
2040
975
920
872
30
5
24-Φ30
900
330
510
710
2255
1075
1020
972
34
5
24-Φ30
1000
410
550
770
2380
1175
1120
1072
38
5
28-Φ30
1200
470
630
890
2640
1405
1340
1289
42
5
32-Φ33
Main connection and dimensions (PN10)
nominal diameter
主要外形尺寸及连接尺寸(mm)
valve size mm
flange connection size mm
L
H
H1
D
D1
D2
b
f
z-Φd
short series
long series
50
108
150
112
530
165
125
93
18
3
4-Φ18
65
112
170
115
530
185
145
113
18
3
4-Φ18
80
114
180
120
565
200
160
128
20
3
8-Φ18
100
127
190
138
600
220
180
148
20
3
8-Φ18
125
140
200
164
640
250
210
178
22
3
8-Φ18
150
140
210
175
705
285
240
204
22
3
8-Φ22
200
152
230
200
775
340
295
259
24
3
8-Φ22
250
165
250
243
945
395
350
314
26
3
12-Φ22
300
178
270
283
1070
445
400
362
26
4
12-Φ22
350
190
290
310
1140
505
460
422
26
4
16-Φ22
400
216
310
340
1210
565
515
473
26
4
16-Φ26
450
222
330
380
1335
615
565
523
28
4
20-Φ26
500
229
350
410
1415
670
620
578
28
4
20-Φ26
600
267
390
470
1605
780
725
677
34
5
20-Φ30
700
292
430
550
1844
895
840
792
35
5
24-Φ30
800
318
470
640
2040
1015
950
899
38
5
24-Φ33
900
330
510
710
2255
1115
1050
999
38
5
28-Φ33
1000
410
550
770
2380
1230
1160
1106
44
5
28-Φ36
1200
470
630
890
2640
1455
1380
1323
55
5
32-Φ39
Main connection and dimensions(PN16)
nominal
主要外形尺寸及连接尺寸(mm)
阀门尺寸mm
法兰连接尺寸mm
L
H
H1
D
D1
D2
b
f
z-Φd
短系列
长系列
50
108
150
112
530
165
125
93
18
3
4-Φ18
65
112
170
115
530
185
145
113
18
3
4-Φ18
80
114
180
120
565
200
160
128
20
3
8-Φ18
100
127
190
138
600
220
180
148
20
3
8-Φ18
125
140
200
164
640
250
210
178
22
3
8-Φ18
150
140
210
175
705
285
240
204
22
3
8-Φ22
200
152
230
200
775
340
295
259
24
3
12-Φ22
250
165
250
243
945
405
355
315
26
3
12-Φ26
300
178
270
283
1070
460
410
370
28
3
12-Φ26
350
190
290
310
1140
520
470
428
30
4
16-Φ26
400
216
310
340
1210
580
525
479
32
4
16-Φ30
450
222
330
380
1335
640
585
539
40
4
20-Φ30
500
229
350
410
1415
715
650
601
44
4
20-Φ33
600
267
390
470
1605
840
770
716
54
5
20-Φ36
700
292
430
550
1844
910
840
786
58
5
24-Φ36
800
318
470
640
2040
1025
950
893
62
5
24-Φ39
900
330
510
710
2255
1125
1050
993
64
5
28-Φ39
1000
410
550
770
2380
1255
1170
1110
68
5
28-Φ42
1200
470
630
890
2640
1485
1390
1324
78
5
32-Φ48
主要连接及外形尺寸(PN25)
公称
通径
主要外形尺寸及连接尺寸(mm)
阀门尺寸mm
法兰连接尺寸mm
L
H
H1
D
D1
D2
b
f
z-Φd
短系列
长系列
50
108
150
112
530
165
125
93
20
3
4-Φ18
65
112
170
115
530
185
145
113
22
3
8-Φ18
80
114
180
120
565
200
160
128
24
3
8-Φ18
100
127
190
138
600
235
190
154
24
3
8-Φ22
125
140
200
164
640
270
220
180
26
3
8-Φ26
150
140
210
175
705
300
250
210
28
3
8-Φ26
200
152
230
200
775
360
310
270
30
3
12-Φ26
250
165
250
243
945
425
370
326
32
3
12-Φ30
300
178
270
283
1070
485
430
386
34
3
16-Φ30
350
190
290
310
1140
555
490
441
38
4
16-Φ33
400
216
310
340
1210
620
550
498
40
4
16-Φ36
450
222
330
380
1335
670
600
548
46
4
20-Φ36
500
229
350
410
1415
730
660
608
48
4
20-Φ36
600
267
390
470
1605
845
770
713
58
5
20-Φ39
700
292
430
550
1844
960
875
815
60
5
24-Φ42
800
318
470
640
2040
1085
990
924
66
5
24-Φ48
900
330
510
710
2255
1185
1090
1024
70
5
28-Φ48
1000
410
550
770
2380
1320
1210
1136
74
5
28-Φ56
1200
470
630
890
2640
1530
1420
1346
86
5
32-Φ56
-
Main parts material
material code
Valve body, valve cover
valve plate
valve seat
Sealing ring
valve stem
filler
z
HT200 Gray cast iron
Gray cast iron
HT200+Copper / stainless steel
Stainless steel multi layer
20Cr13
graphite
Q
QT450 Nodular graphite cast iron
Nodular graphite cast iron
QT450+Copper / stainless steel
Stainless steel multi layer
20Cr13
graphite
C
WCB carbon steel
carbon steel
WCB+Copper / stainless steel/Cemented carbide
Stainless steel multi layer
20Cr13
graphite
P
CF8 (304 )stainless steel
stainless steel
stainless steel
Stainless steel multi layer
304
PTFE
R
CF8M (316) stainless steel
stainless steel
stainless steel
Stainless steel multi layer
316
PTFE
PL
CF3 (304 L)stainless steel
stainless steel
stainless steel
Stainless steel multi layer
304L
PTFE
RL
CF3M (316L) stainless steel
stainless steel
stainless steel
Stainless steel multi layer
316L
PTFE
Other special materials, our company can also be tailored to customer needs.
-
壳体材料
适用介质
适用温度（℃）
灰铸铁（Z）
水、空气、油品
≤200
球墨铸铁（Q）
水、蒸汽、油品
≤350
碳素钢（C型）
水、蒸汽、油品
≤425
铬镍钛钢（P型）
硝酸类
≤150
铬镍钼钛钢（R型）
醋酸类
≤150
公称压力PN（MPa）
壳体
试验压力（MPa）
密封（液）
密封（气）
0.6
0.9
0.66
0.6
1.0
1.5
1.1
0.6
1.6
2.4
1.8
0.6
2.5
3.8
2.8
0.6
4
6
4.4
0.6
