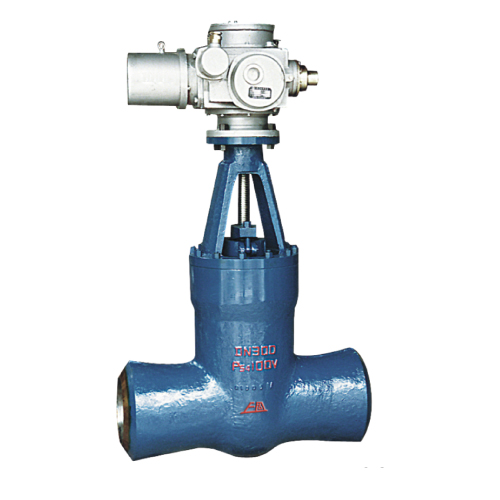

Electric gate valve Z961Y
- name: Electric gate valve Z961Y
- Type: Z961Y
- Presure: P54 100V、P54 140V、P54 170V
- Specifications: DN50～DN300
- material: 12Cr5MoV
Product description
1, this series of valves with advanced technology and through structure, greatly reducing the flow resistance coefficient and energy loss, significantly improve the life and performance of the valve.
2, the valve in the cavity using pressure self tight seal structure, good sealing performance. Pipe ends welded structure.
3, the gate plate and the valve seat sealing surface with Stellite Stellite cobalt based alloy surfacing and, wear-resisting, withstand high temperatures, corrosion resistance, and good anti abrasion performance.
4, the stem after quenching and tempering and surface nitriding treatment, with good corrosion resistance and abrasion resistance.
5, opening and closing parts of the structure can be designed according to user requirements into a single board, double plate, parallel double plate and other different forms.
Main dimensions and weight 1500Lb
Nominal diameter
Main dimensions and connection dimensions (mm)
motor unit
d
L
H
H0
L1
L2
2-1/2"
56
254
520
200
140
243
SMC-04
3"
64
305
523
200
140
243
SMC-04
4"
85
406
599
508
198
281
SMC-03
599
305
400
555
SMC-00
5"
100
483
678
508
198
281
SMC-03
678
305
400
555
SMC-00
6"
126
559
793
305
410
565
SMC-0
793
305
420
654
SMC-1
8"
158
711
813
305
410
565
SMC-0
813
305
420
654
SMC-1
10"
200
864
998
457
440
688
SMC-2
988
305
420
654
SMC-1
12"
250
991
1141
305
420
654
SMC-1
1156
457
440
688
SMC-2
Main dimensions and weight 2000Lb
Nominal diameter
Main dimensions and connection dimensions (mm)
motor unit
d
L
H
H0
L1
L2
2-1/2"
50
330
540
200
140
243
SMC-04
3"
60
368
558
508
198
332
SMC-03
4"
80
457
654
305
400
555
SMC-00
5"
96
533
780
305
400
555
SMC-00
780
305
410
565
SMC-0
6"
118
610
830
305
410
565
SMC-0
8"
148
762
960
305
410
565
SMC-0
960
305
420
654
SMC-1
10"
180
914
1020
304
420
654
SMC-1
1024
457
440
688
SMC-2
12"
222
1041
1150
457
440
688
SMC-2
14"
254
1118
1230
457
440
688
SMC-2
Main dimensions and weight 2500Lb
Nominal diameter
Main dimensions and connection dimensions(mm)
motor unit
d
L
H
H0
L1
L2
2-1/2"
46
330
533
508
198
332
SMC-03
533
200
140
243
SMC-04
3"
54
368
549
508
198
332
SMC-03
549
200
140
243
SMC-04
4"
70
457
653
508
198
332
SMC-03
644
305
410
565
SMC-0
5"
86
533
760
305
400
555
SMC-00
774
305
400
565
SMC-0
6"
104
610
850
305
400
555
SMC-00
861
305
410
565
SMC-0
8"
130
762
847
305
410
565
SMC-0
860
305
420
654
SMC-1
10"
162
914
1021
305
420
654
SMC-1
Main dimensions and weight 3500Lb
Nominal diameter
Main dimensions and connection dimensions (mm)
motor unit
d
L
H
H0
L1
L2
3"
44
440
620
508
198
332
SMC-03
623
305
400
555
SMC-00
4"
56
540
721
305
400
555
SMC-00
730
305
410
565
SMC-0
5"
74
616
796
305
410
565
SMC-0
796
305
420
654
SMC-1
6"
88
692
857
305
410
565
SMC-0
857
305
420
654
SMC-1
8"
116
846
1041
305
420
654
SMC-1
1051
457
440
688
SMC-2
10"
142
1000
1197
457
440
688
SMC-2
-
Main part material
material code valve body
valve plate
piston
The stem
Four open loop
filler
Stem and nut
C
WCB carbon steel
WCB
A105
20Cr13
A105
graphite
ZQAL9-4
I
WC6 Cr Mo steel
WC6
F11
38CrMoAL
F11
graphite
ZQAL9-4
V
WC9 Cr Mo steel
WC9
F22
25Cr2MoVA
F22
graphite
ZQAL9-4
Other special materials, our company can also be tailored to customer needs.
-
Performance specification
Shell material
Applicable medium
Applicable temperature（℃）
carbon steel（C type）
Water, steam, oil
≤425
carbon steel（I、V type）
Water, steam, oil
≤550
Nominal pressure PN（MPa）
shell（MPa）
test pressyre（MPa）
upper seal（MPa）
seal（liquid）（MPa）
seal（gas）（MPa）
25
37.5
27.5
0.6
27.5
32
48.0
36.0
0.6
36.0
P5410
30.0
22.0
0.6
22.0
P5514
37.5
27.5
0.6
27.5
P5517
48.0
36.0
0.6
36.0
P5717
61.8
41.2
0.6
41.2
- Implementation standards:
Design standard: JB/T3595
Structure length: GB/T12221
Groove size: JB/T3595
Experiment and test: GB/T13927
Pressure - temperature: JB/T3595 GB/T9131
Product label: GB/T12220
- Storage and maintenance
Valves can be stored in any area of the mask, but must pay attention to prevent the valve is soil or ground dirty. At the time of shipment, the inlet and outlet of the valve are provided with a protective cover. Note that before the installation of the valve, do not remove these protective cover. When the valve is ready to be installed, the protective end cover is removed first, and then the connection parts are cleaned. If is the butt welding end of the valve, to remove all visible foreign body. Use suitable solution to clean the parts that need to be welded, such as acetone or alcohol. Do not use a solution containing fluoride or chloride.
Installation and maintenance
1 handwheel, handle and drive mechanism for lifting are not allowed to use, and avoid collision.
2 double gate valve should be installed vertically (that is, the valve stem is in the vertical position, the hand wheel at the top).
3 valve with bypass valve should be opened before opening the bypass valve (in order to balance the pressure of the inlet and outlet and reduce the opening force).
4 with the transmission mechanism of the gate valve, according to the provisions of the product manual installation.
5 if the valve is often used to switch, at least once a month.
